D1.1 Practice Plates - B-U2a & B-U2a-GF

D1.1 Practice Plate – Pre-Tacked, B-U2a/B-U2a-GF

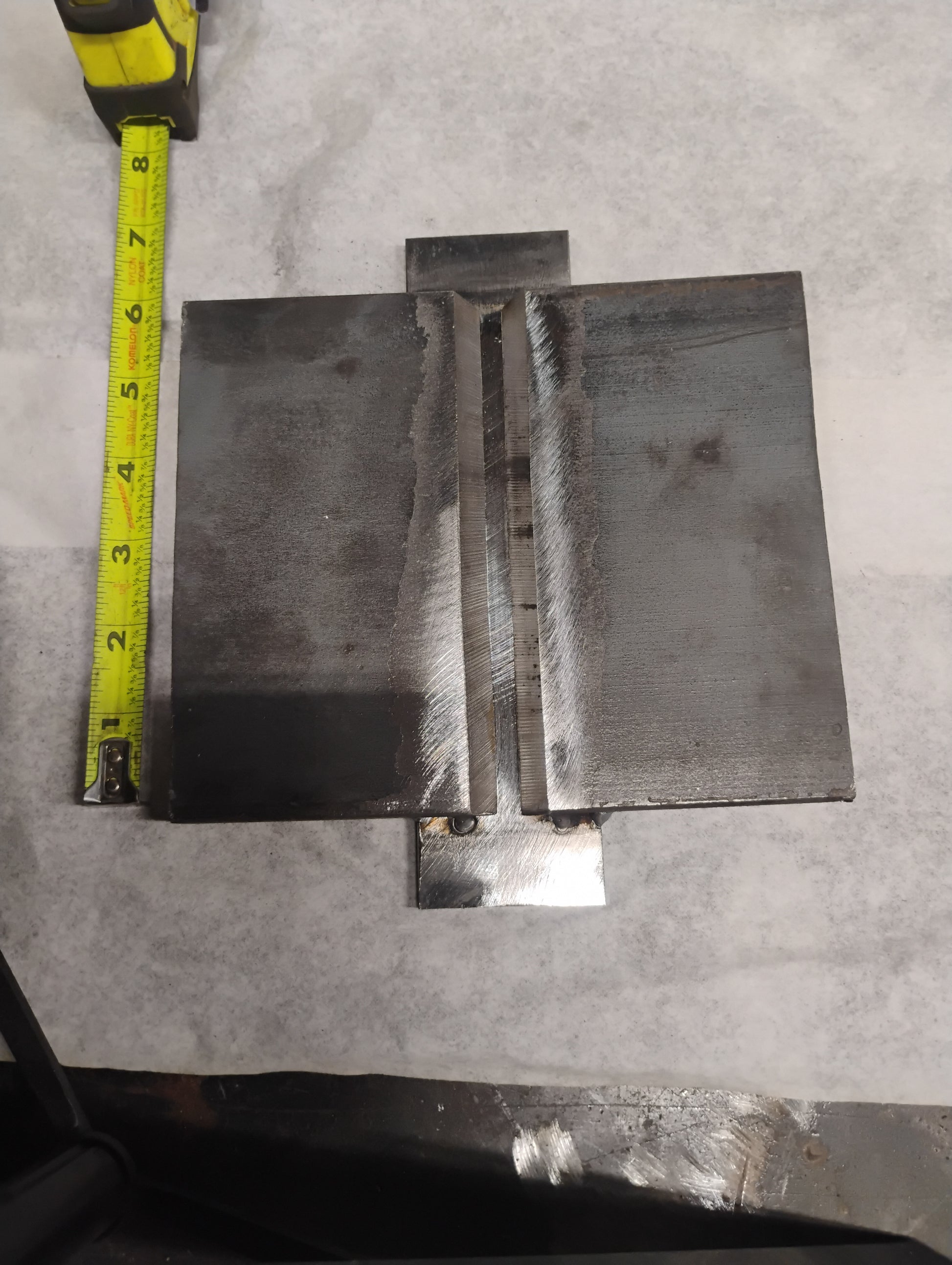

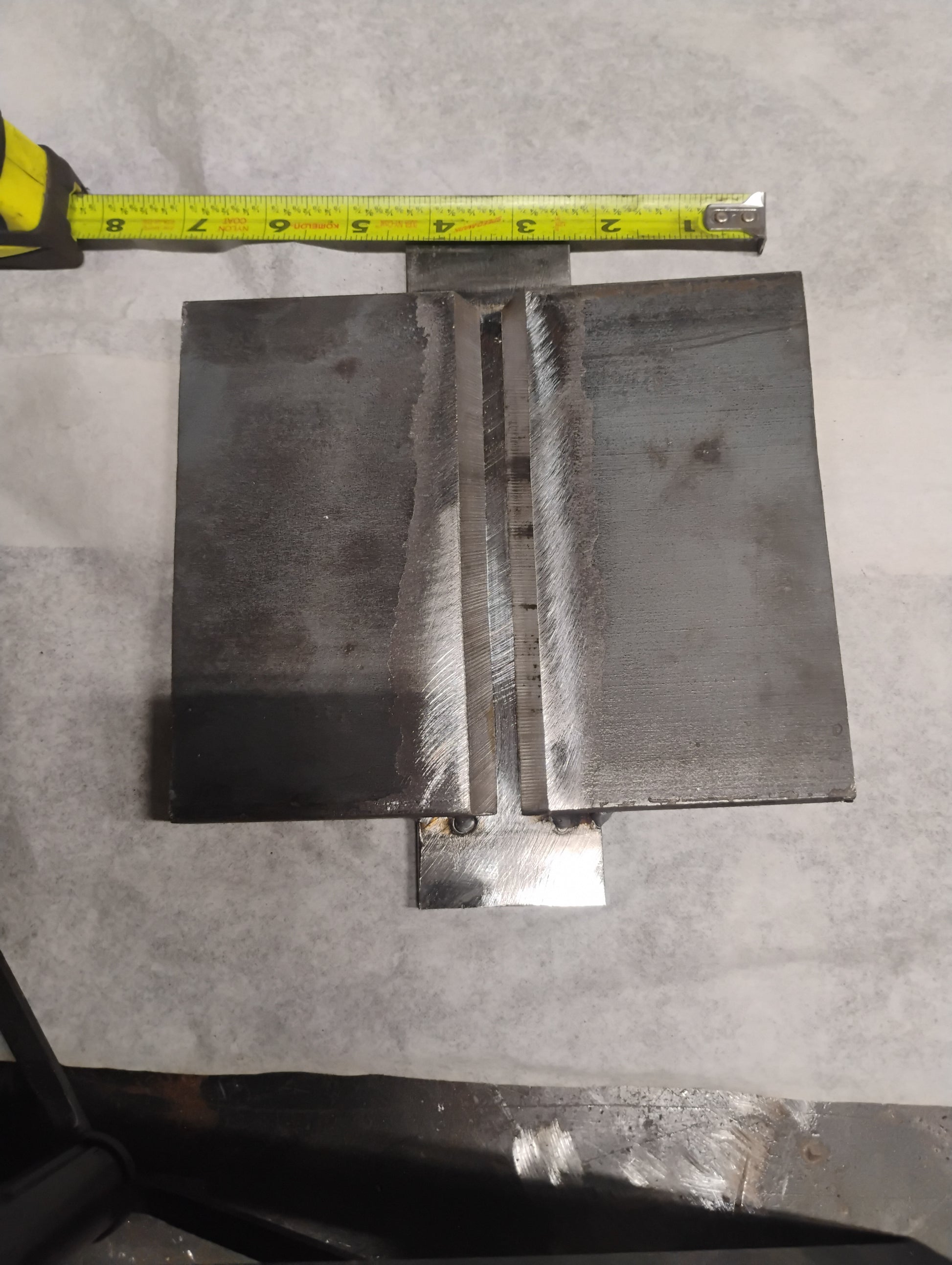

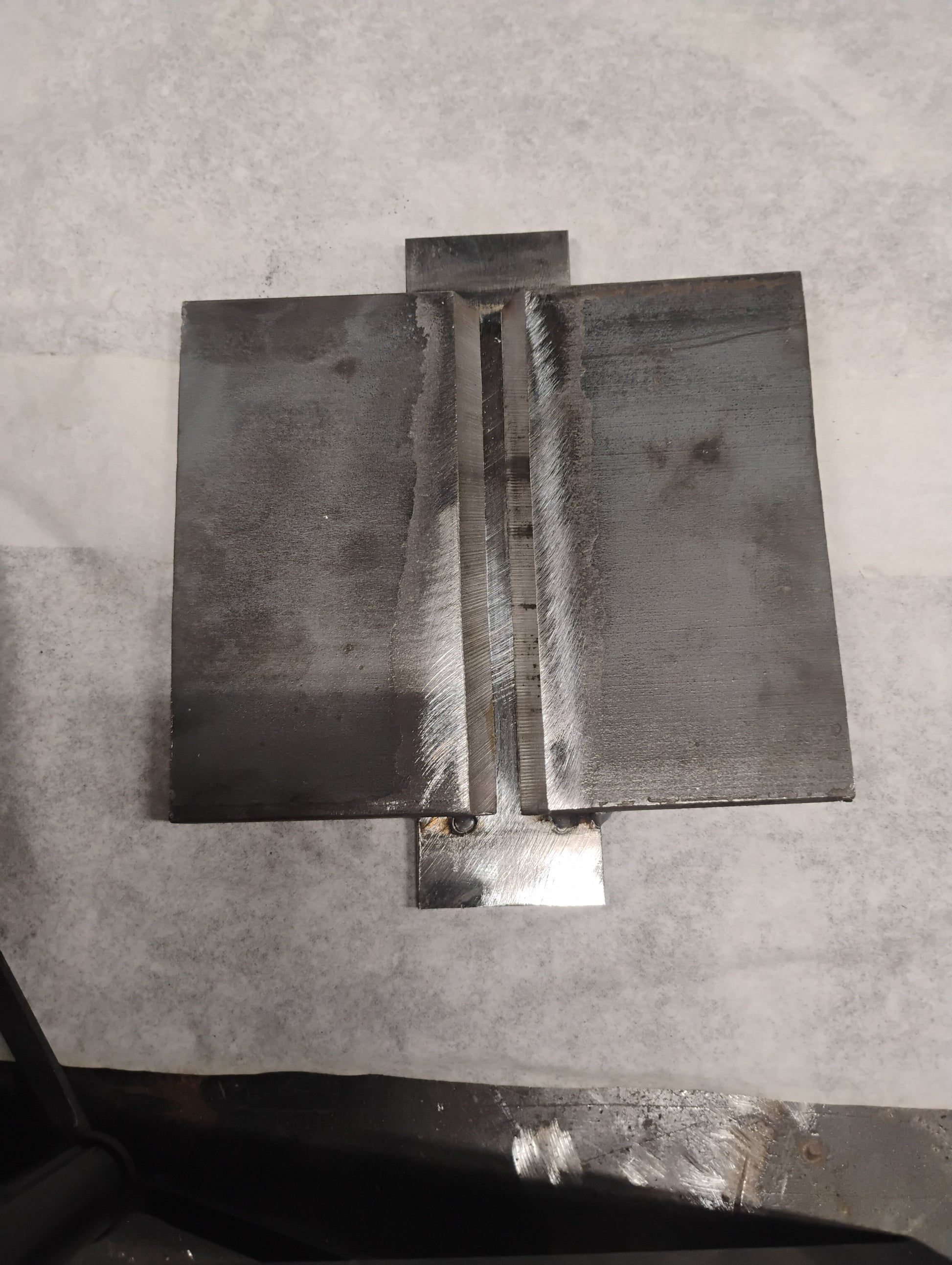

Pre-tacked groove weld test assembly prepared to AWS D1.1 B-U2a/B-U2a-GF specifications.

Includes:

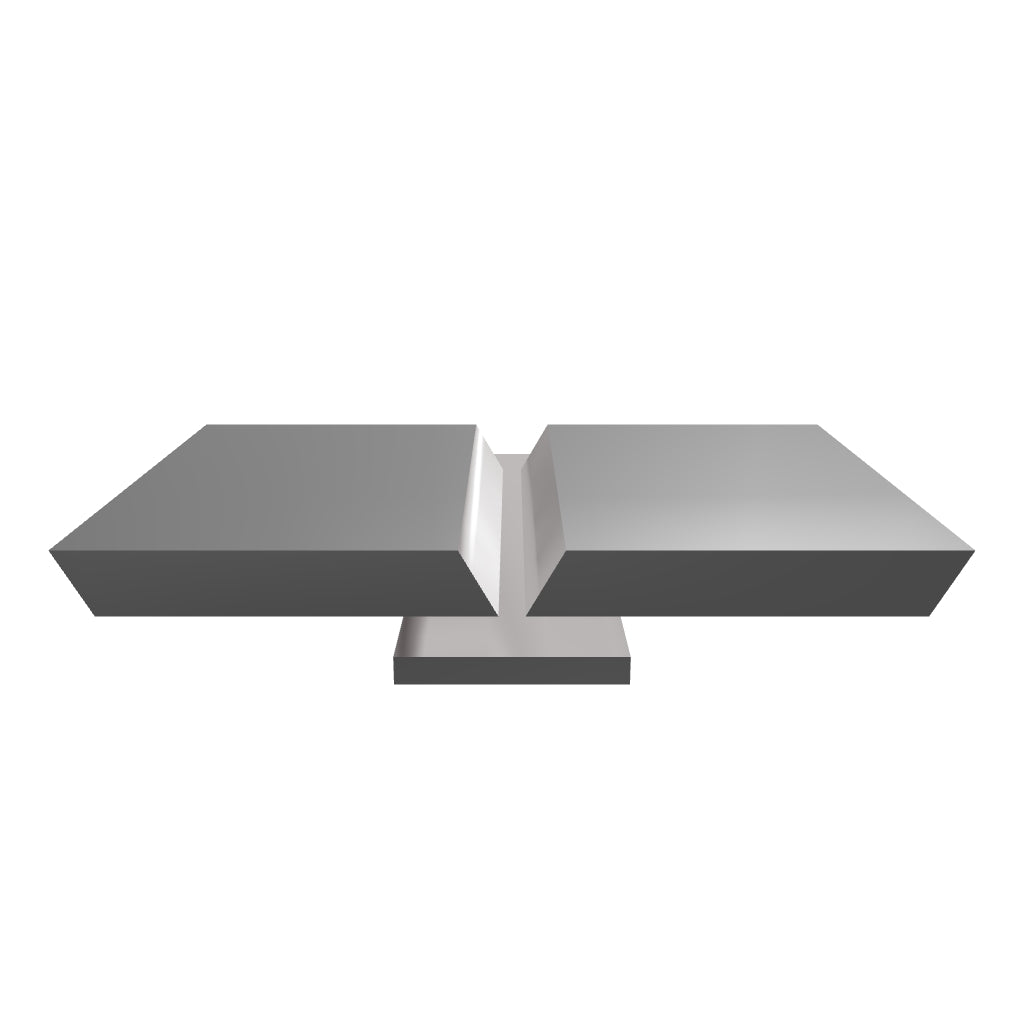

• (2) A36 steel plates – 3.25" × 6" × 1/2", beveled to 22.5° each side (45° included angle)

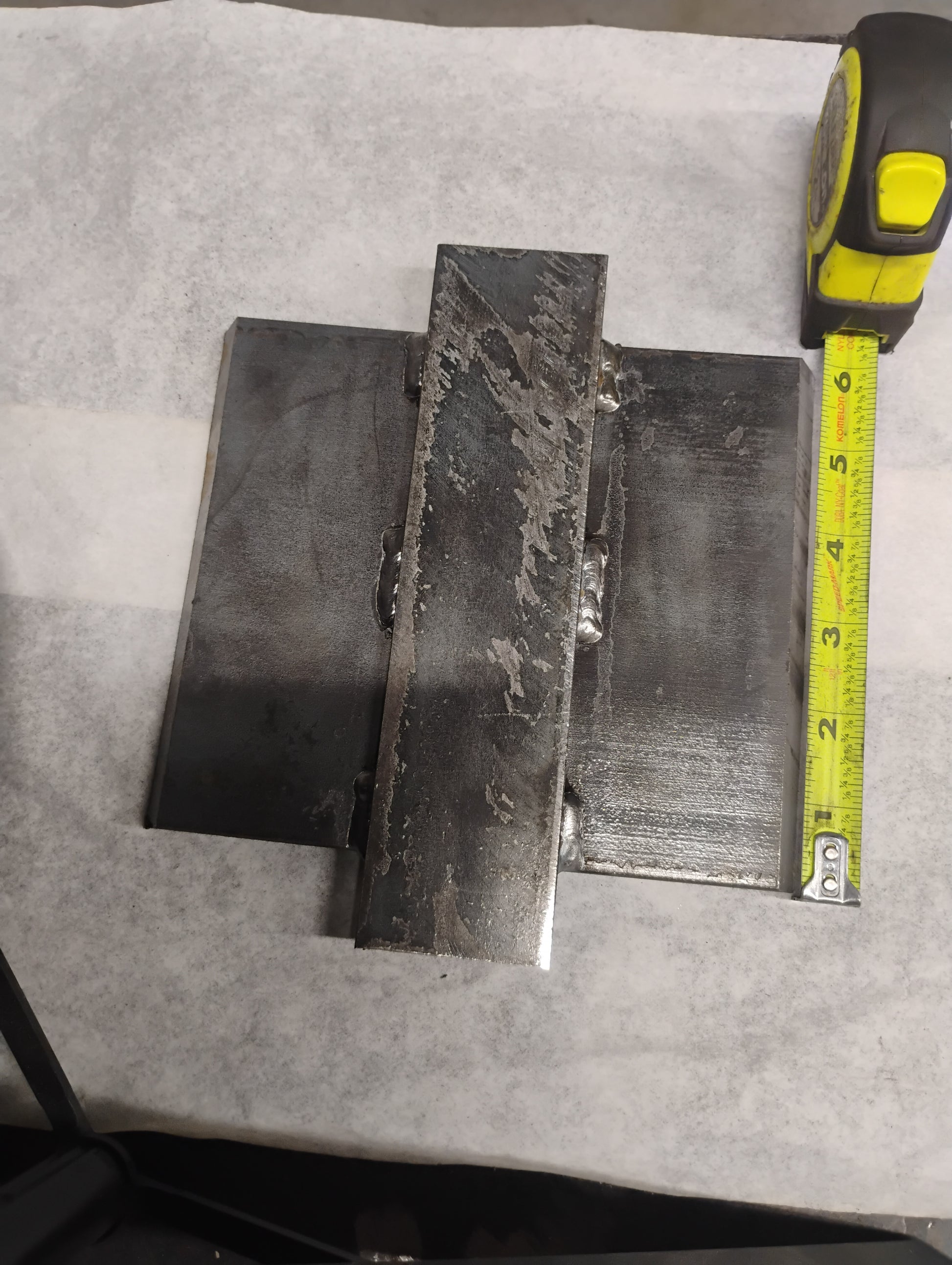

• (1) A36 backing bar – 2" × 8" × 1/4"

• Tacked with 1/4" root opening per code

• Laser-etched joint designation on the back for easy reference

• (2) reference sheets covering weld procedure, visual inspection criteria for the final weld, and instructions for cutting side bend specimens

• Weld height gauge for verifying final weld reinforcement is within AWS D1.1 spec

Use:

• Practice for AWS D1.1 groove weld qualification


• One of the most common joint design for WPS and welder qualifications.

• SMAW, FCAW, or GMAW training

• Visual inspection and bend test prep

*Bulk pricing is available. "Contact Me" to send bulk requests or if you need specific tests made

*These plates are for practice only. Completion of this weldment does not constitute a qualification or certification.
