Dixie Chopper Weld-In Battery Box Replacement Tray

Replace your rotted or missing factory battery tray with a direct-fit, heavy-duty steel replica designed specifically for Dixie Chopper zero-turn mowers.

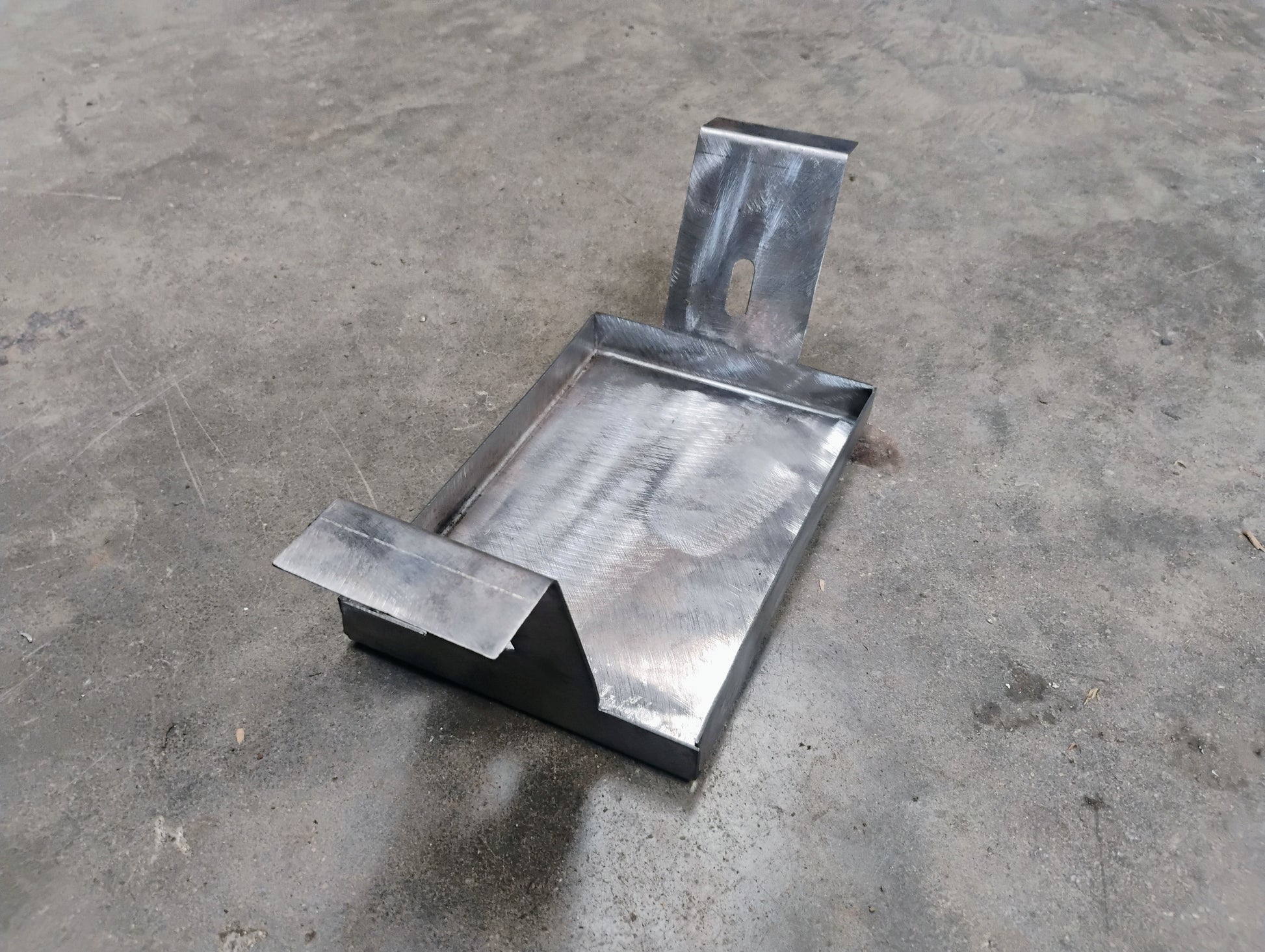

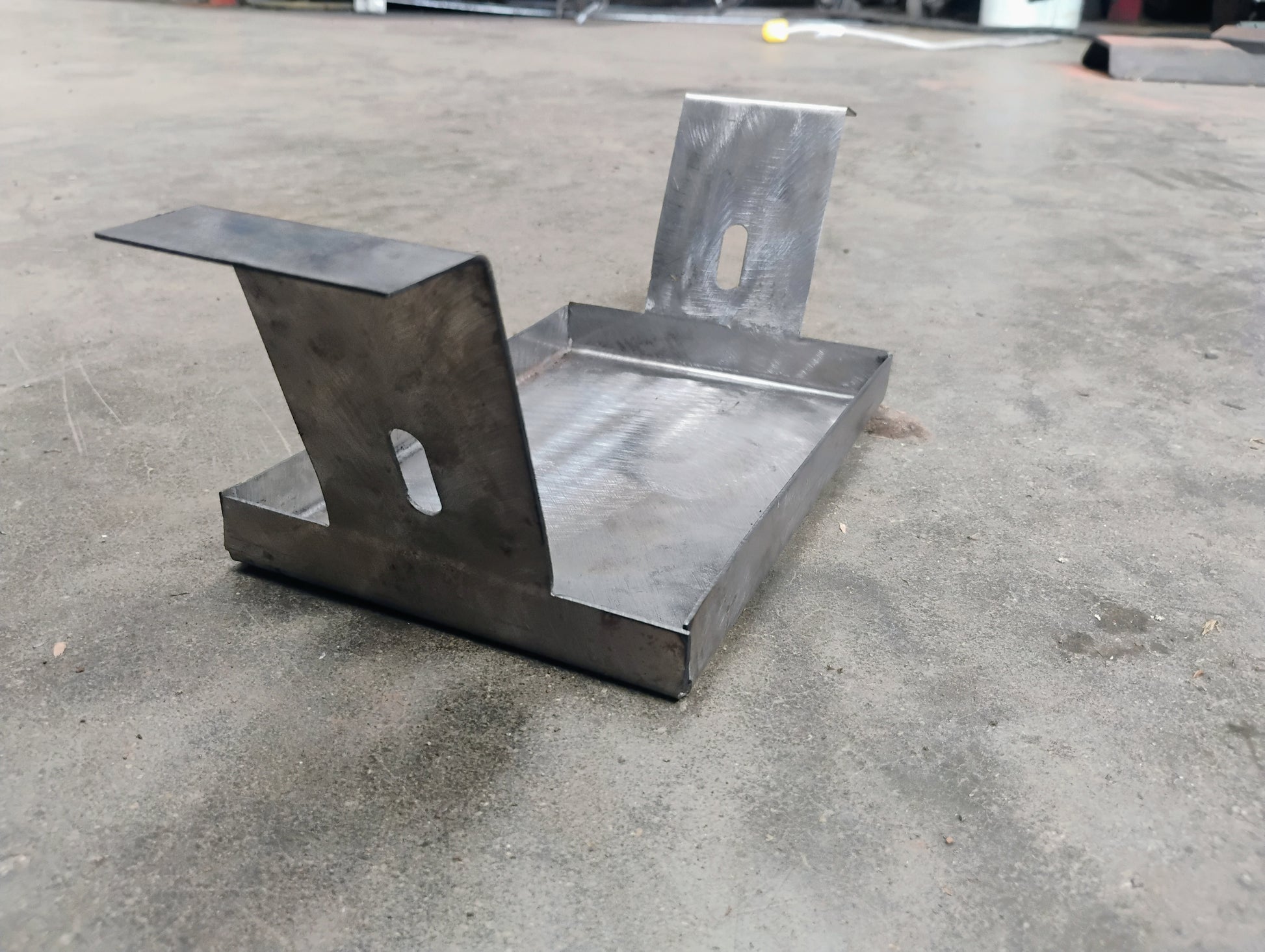

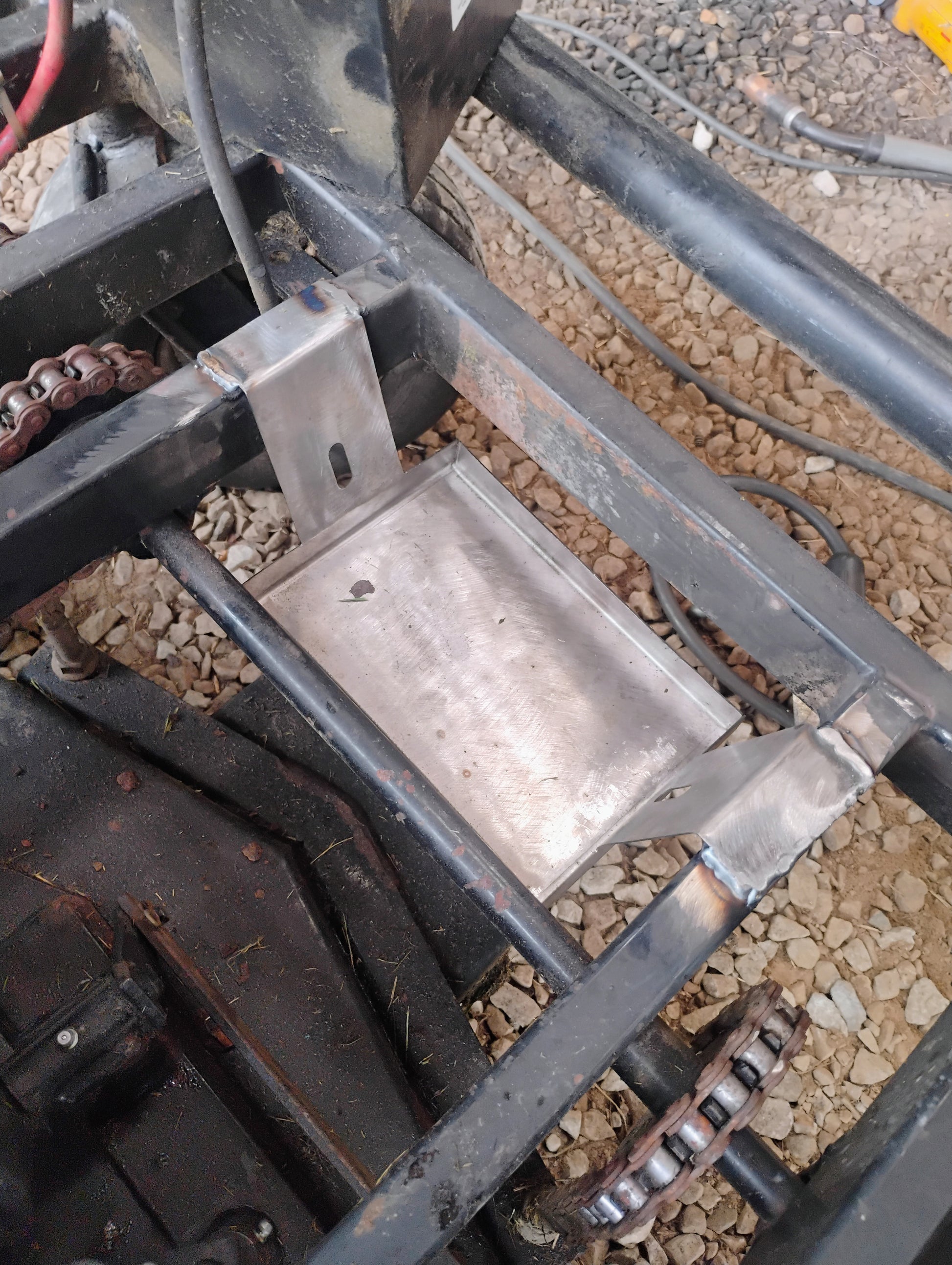

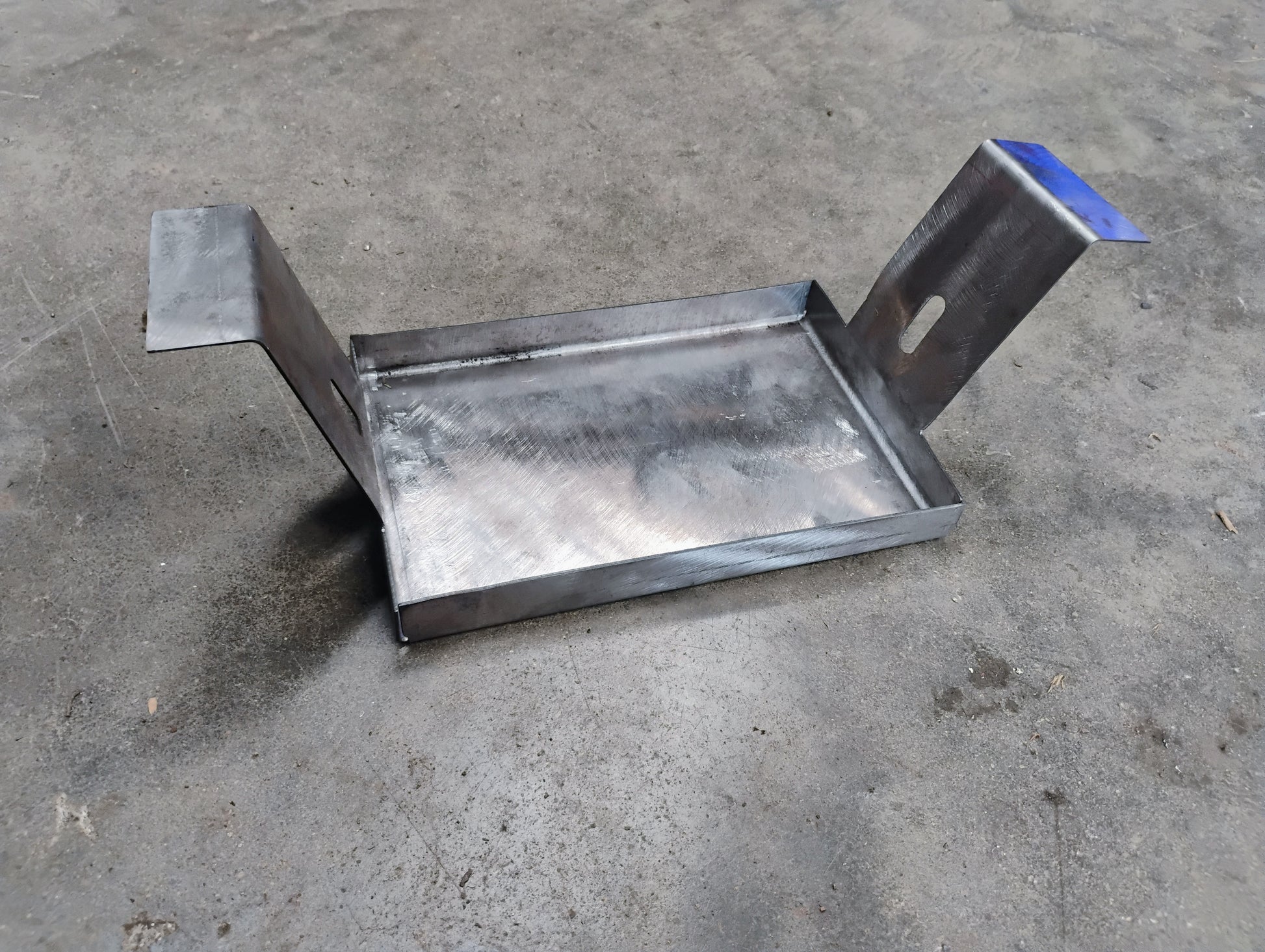

Because original Dixie Chopper battery trays were welded directly to the frame, replacement options have been almost impossible to find—until now. Precision CNC-cut and bent to replicate factory geometry, this tray lets you grind out your damaged original box and weld a fresh piece right back into the original position.

Features

Direct Weld-In Fit: Engineered to replicate the factory footprint, wing-arm angles, and slot locations for straightforward alignment during installation.

Heavy-Duty Construction: Formed from 18-gauge (0.045") raw steel—clean, unpainted, and ready for TIG or MIG welding right out of the box.

U1 Battery Footprint: Designed to fit standard Group U1 lawn and garden batteries.

Made in USA: Precision fabricated in-house to strict tolerances.

Compatibility & Fitment

Fits a wide range of mid-1990s through early-2010s commercial Dixie Chopper zero-turn mowers utilizing factory frame-welded trays, including:

Classic Series: 2750, 3060, 3360, etc.

Silver Eagle Series: 2550, 2750, 2760, etc.

LX Series: LX2000, LX2001, LX2400

X Series & Xtreme: X2000, X2002, X2500, XWD

Industrial & Early Zee Series

Direct replacement for hard-to-find or discontinued OEM part numbers: 400065, 400072DC, 401067, and 401791.

Specifications

Material: 18-Gauge (0.045") Mild Steel

Finish: Bare Steel (Requires welding and painting/coating post-installation)

Flat Pattern Dimensions: ~18.5" x 8"

Note: Requires grinding off the old factory tray and welding the new tray in place. Surface preparation/cleaning recommended prior to welding. Paint, primer, and mounting hardware/straps are not included.
