IH Tractor Dual-Speed PTO Removal & Installation Lifting Tool (06, 56, 66, 86, 88 Series)

IH Tractor Dual-Speed PTO Removal & Installation Lifting Bracket Tool

Taking the 200 lb dual-speed PTO assembly out of your International Harvester tractor doesn't have to be a dangerous back-breaking chore or a two-man struggle.

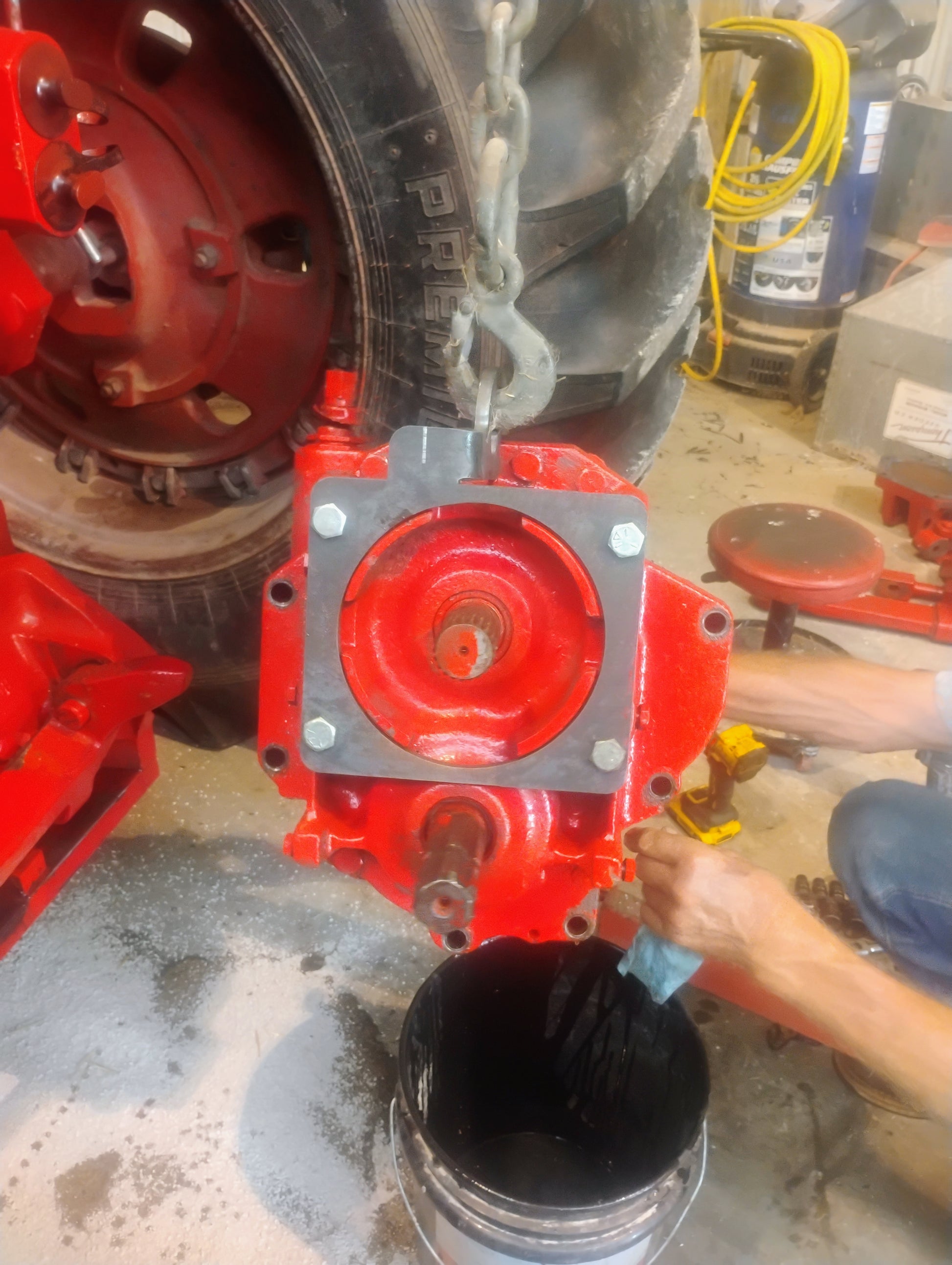

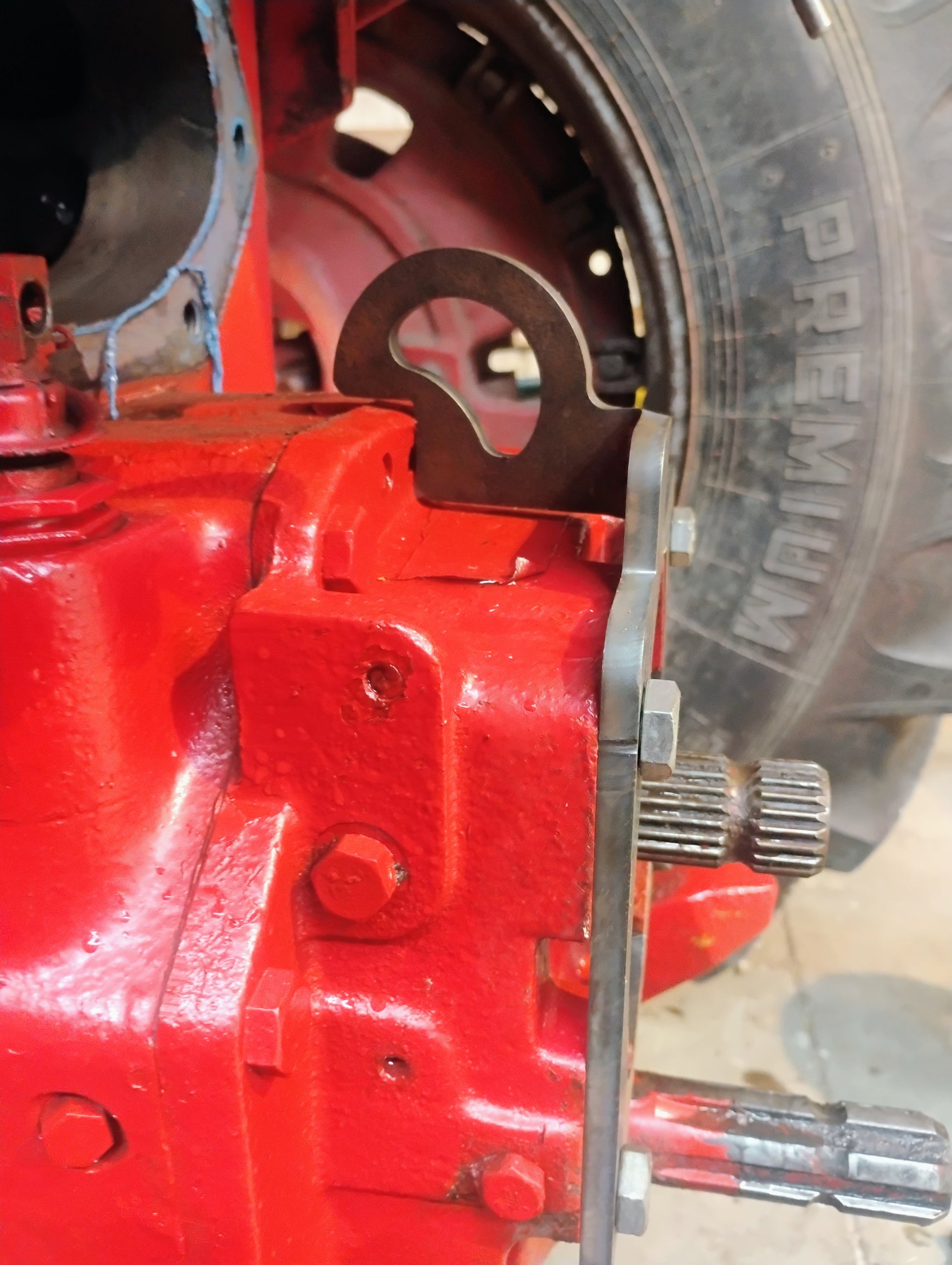

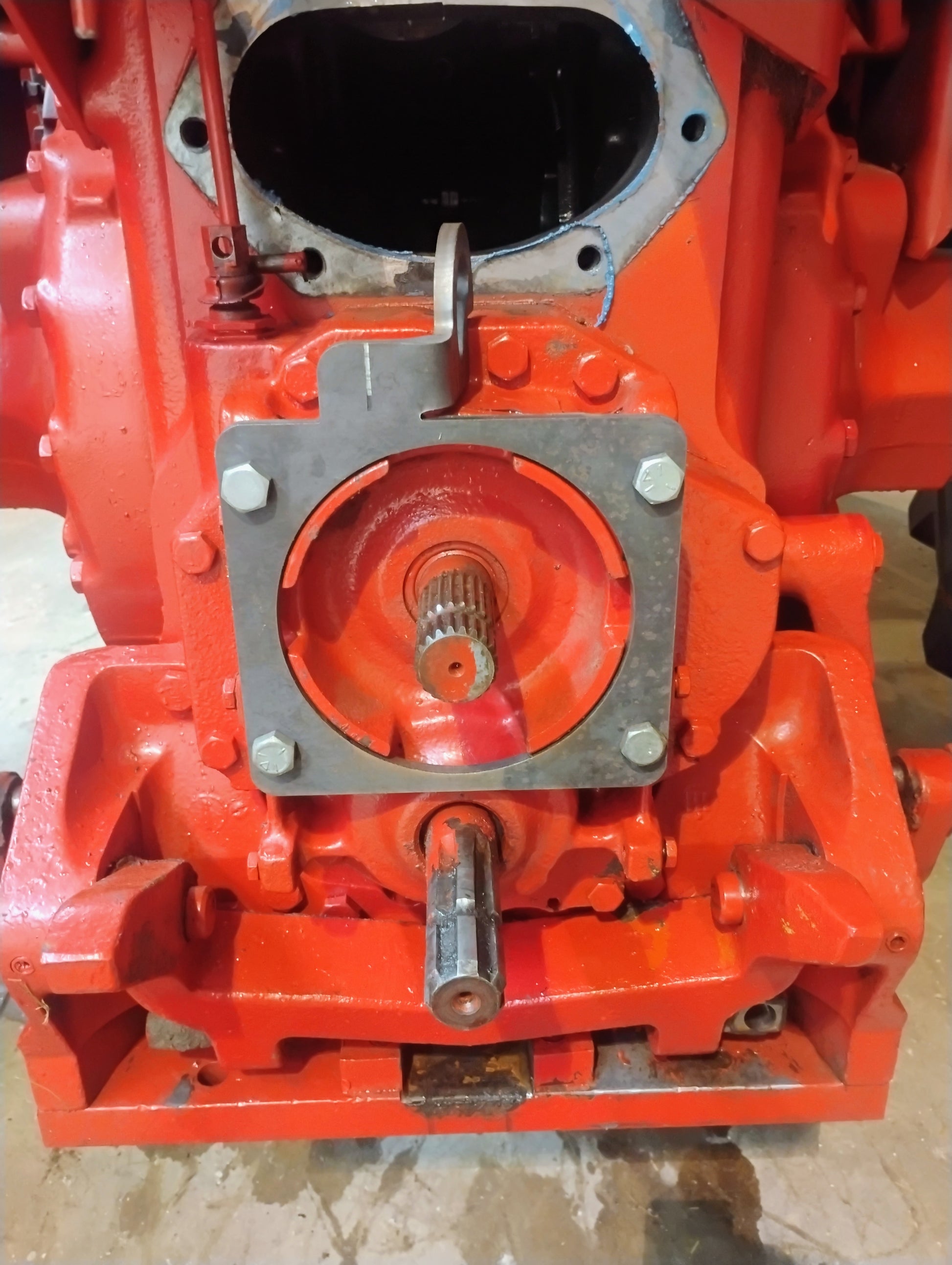

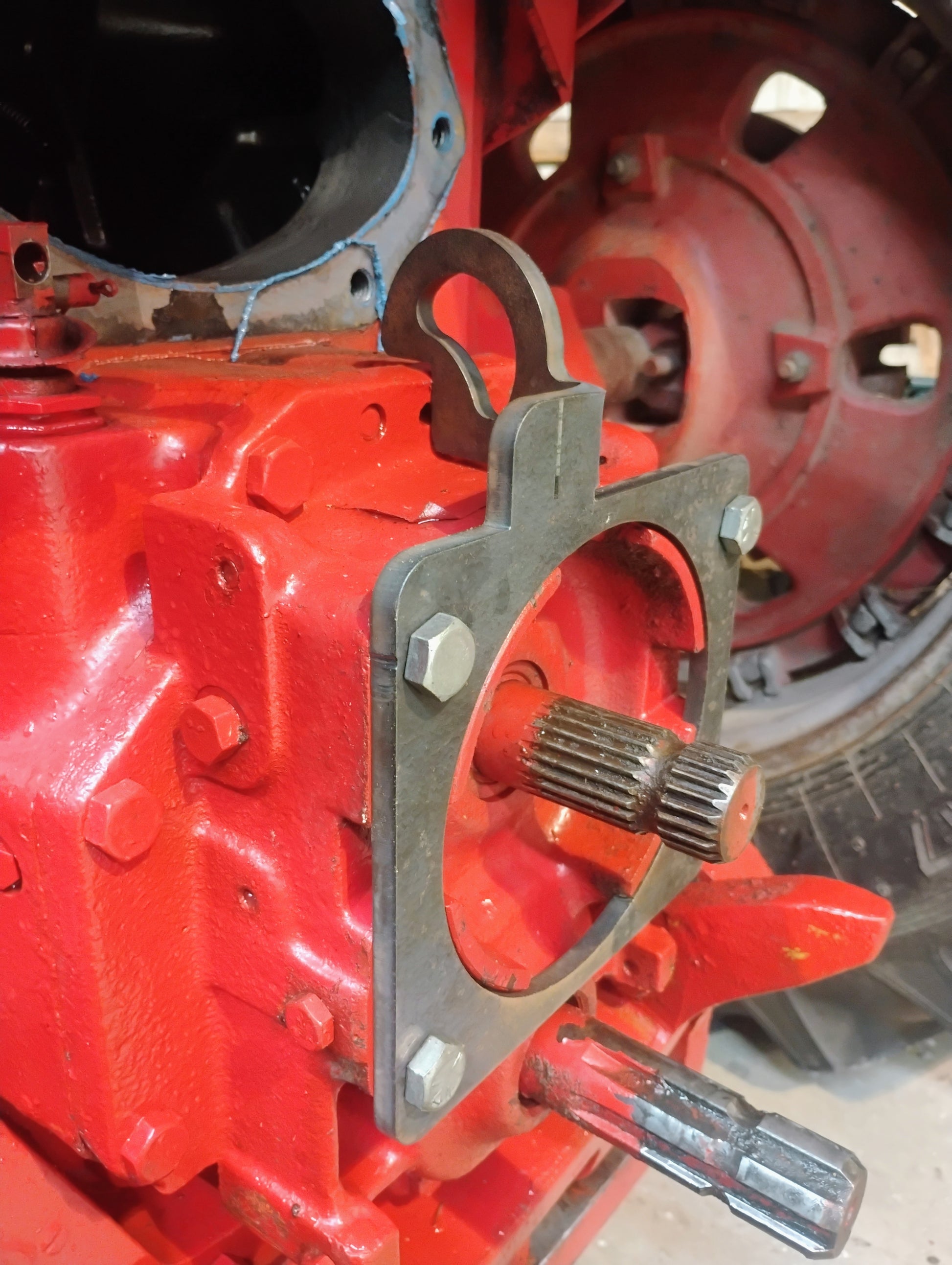

Designed and fabricated right here in the USA, this heavy-duty lifting plate bolts directly to the rear bearing retainer housing, giving you a perfectly balanced center of gravity for smooth, safe removal and installation using your engine hoist or shop crane.

Key Features & Specifications:

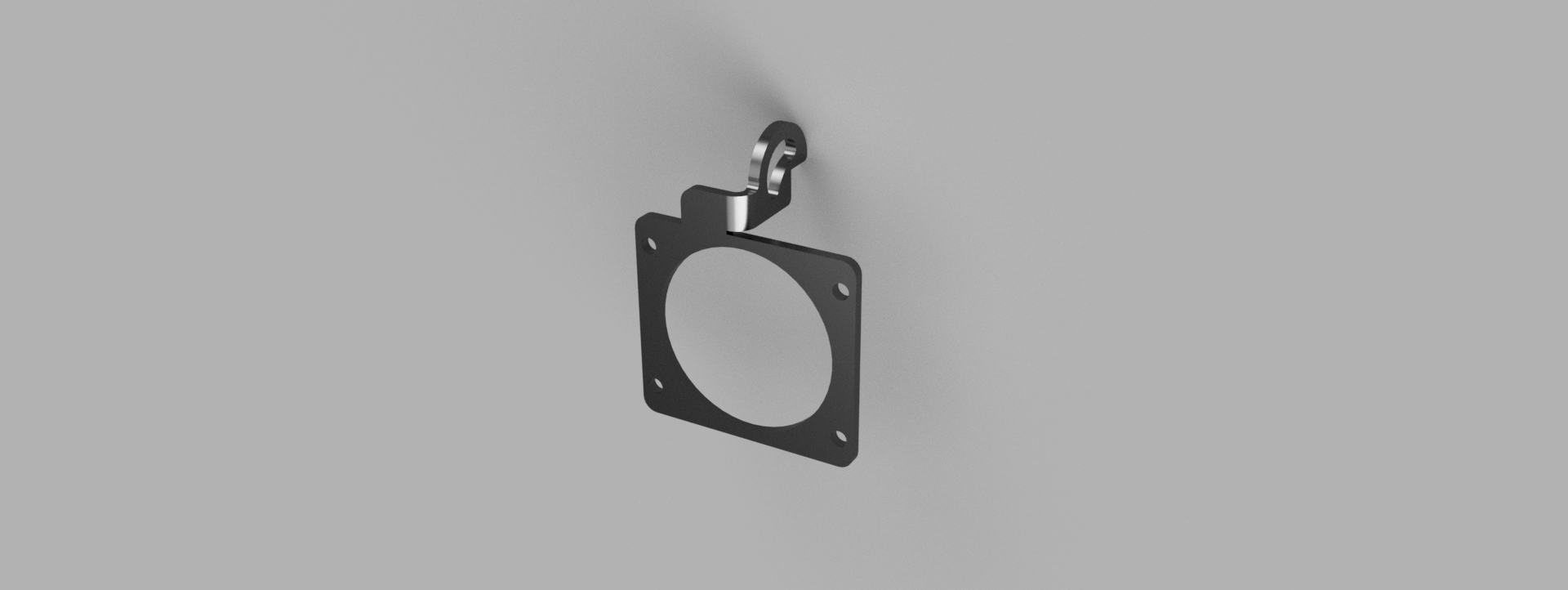

• Built Heavy: Precision CNC plasma-cut from solid 5/16" steel plate with a single press-brake bend for maximum rigidity under load.

• Exact Fit: Bolt hole spacing measures 6.75" x 5" center-to-center to mount flush to the retainer plate.

• Shaft Clearance: Features a large 6.25" center cutout to easily clear the PTO output shaft without interference.

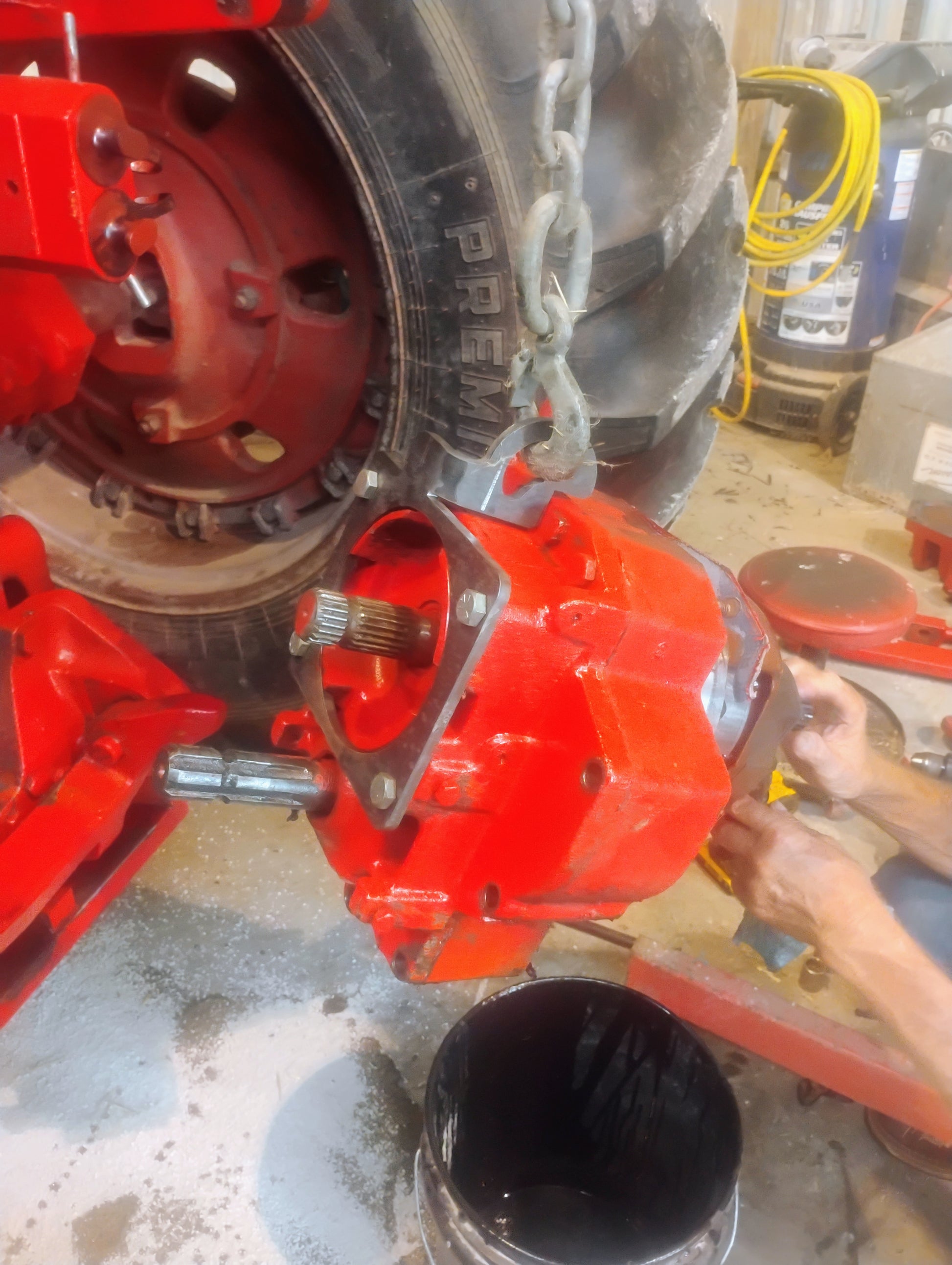

• Balanced Lifting Eye: Engineered so the PTO unit hangs level when lifted—preventing binding on the internal drive splines and protecting the bottom hydraulic suction tube/O-ring from cracking during removal.

• Complete Ready-to-Work Kit: Includes (4) Grade 5 mounting bolts so you can unbox it and go straight to work without hunting for hardware.

Fits IH Tractor Models:

Bolts directly to the self-contained dual-speed (540/1000 RPM) rear PTO housing on the following series:

• 86 Series: 786, 886, 986, 1086, 1486, 1586, Hydro 186

• 66 Series: 766, 966, 1066, 1466, 1566, 1468, 1568

• 56 Series: 756, 826, 856, 1256, 1456

• 06 & 26 Series: 706, 806, 1206

• 88 Series & 2+2 "Snoopy": 3088, 3288, 3388, 3488, 3588, 3688, 3788

What’s Included:

• (1) 5/16" Steel PTO Lifting Bracket Tool

• (4) Grade 5 Mounting Bolts

⚠️ IMPORTANT FITMENT NOTE — PLEASE MEASURE BEFORE ORDERING: While this tool is designed to fit the standard dual-speed PTO housing on the IH series listed above, manufacturing variations or aftermarket replacement housings can exist. Please measure your bolt pattern prior to ordering. This plate requires a 6.75" x 5" center-to-center bolt pattern and a 6.25" center shaft clearance.
